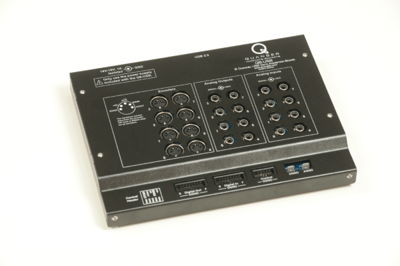

Quanser Q8-USBは、USBインターフェイスを介して信頼性の高いリアルタイムパフォーマンスを提供する、シングルポイントI/O、8チャネルのデータ収集デバイスです。I/O変換時間が短く、接続が簡単で、最大2kHzの閉ループ制御レートを実現したQ8-USBは、ラピッドプロトタイピングおよびHardware-In-The-Loop(ヒッ)開発に理想的なDAQになっています。入力と出力の種類が豊富なため、アナログおよびデジタルセンサー (エンコーダを含む) を装備したさまざまなデバイスを、1つのボードで簡単に接続して制御できます。
ご興味ある方は是非下記の『PRODUCT INFO SHEET』を参照ください。
System requirements | Type A USB 2.0 connector (USB 2.0 driver is required) |
---|---|
Board dimensions (L x W x H) | 22.8 cm x 16.8 cm x 3.4 cm |
Analog inputs | |
Number of channels | 8 |
Resolution | 16-bit |
Input range | ± 5V, ± 10 V |
Conversion time | 4 µs¹ |
Input impedance | 1 MΩ |
Maximum full scale range (FSR) error | ± 12 LSB, ± 6 LSB |
Analog outputs | |
Number of channels | 8 |
Resolution | 16-bit |
Output range | ± 10.8 V, ± 10 V ± 5 V, 10.8 V 10 V, 5 V |
Slew rate | 3.5 V/μs |
Conversion time | 10 μs¹ |
DC output impedance | 0.5 Ω |
Short-circuit current clamp | 20 mA |
Maximum capacity load stability | 4000 pF |
Non-linearity | ± 1 LSB |
Maximum full scale range (FSR) error | ± 65 LSB |
Maximum load for specified performance | 2 kΩ |
Digital inputs | |
Number of digital I/O lines | 8 |
Input low / high | 1.5 V / 3.5 V |
Input leakage current | ± 2 μA |
Digital outputs | |
Number of digital I/O lines | 8 |
Output low / high | 0.55 V / 4.50 V |
Maximum drive current | ± 32 mA |
Encoder inputs | |
Number of encoder inputs | 8 |
Input low / high | 1.5 V / 3.5 V |
Input leakage current | +/- 2 μA |
Maximum A and B frequency in quadrature | 24.883 MHz |
Maximum count frequency in 4x quadrature | 99.532 MHz |
PWM outputs | |
Number of PWM outputs | 8² |
Output low (max) / high (min) | 0.55 V / 4.50 V |
Minimum frequency | 23.7309 Hz |
Maximum frequency | 49.766 MHz |
Bits resolution | 16 bits³ |
¹ the effective conversion time is limited by USB communications at a 125 μs
² shared with the digital outputs
³ depends on the frequency selected for the PWM
